Battery Cooling Plate Tubes are usually integrated into the battery pack structure. A liquid coolant flows through the internal passages of the tubes, absorbing heat from areas close to the battery cells. The heated coolant then moves toward a cooling unit, where the heat is released before the coolant returns to the circulation loop.

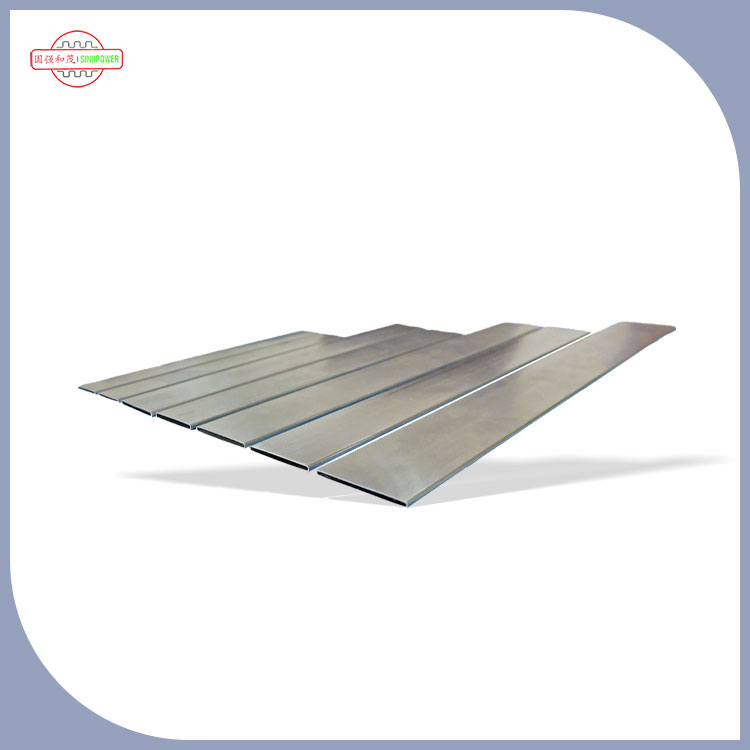

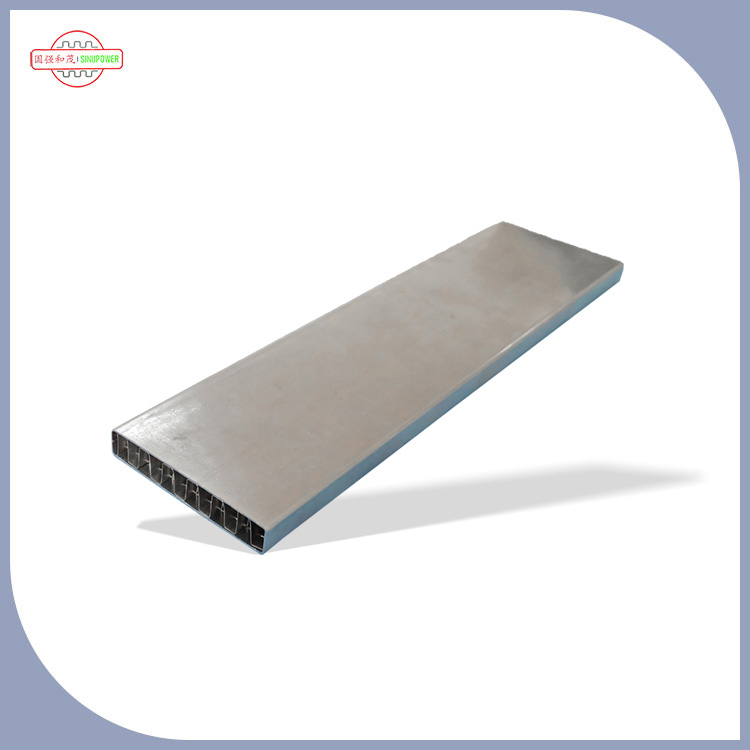

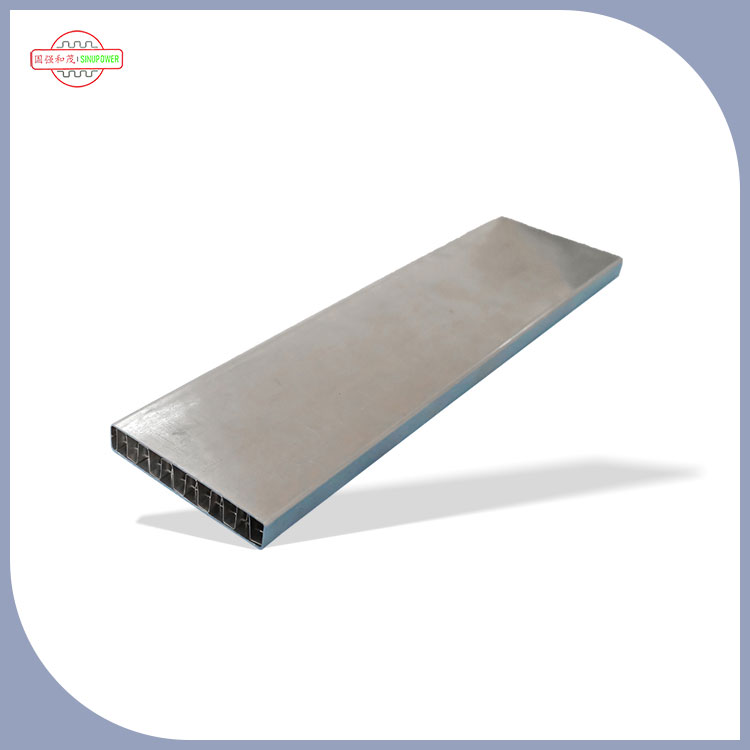

1、 Basic Definition It is a flat heat exchange tube formed by resistance high-frequency solid-state welding technology, which is compressed into a flat cavity with steel strip/aluminum alloy strip. Multiple independent microchannels are formed inside the tube with integrated partition ribs. The weld seam is metallurgically fused through resistance heat and mechanical pressure. It is the core heat exchange element of parallel flow and fin heat exchangers, with high pressure resistance, high weld seam strength, and efficient heat exchange.

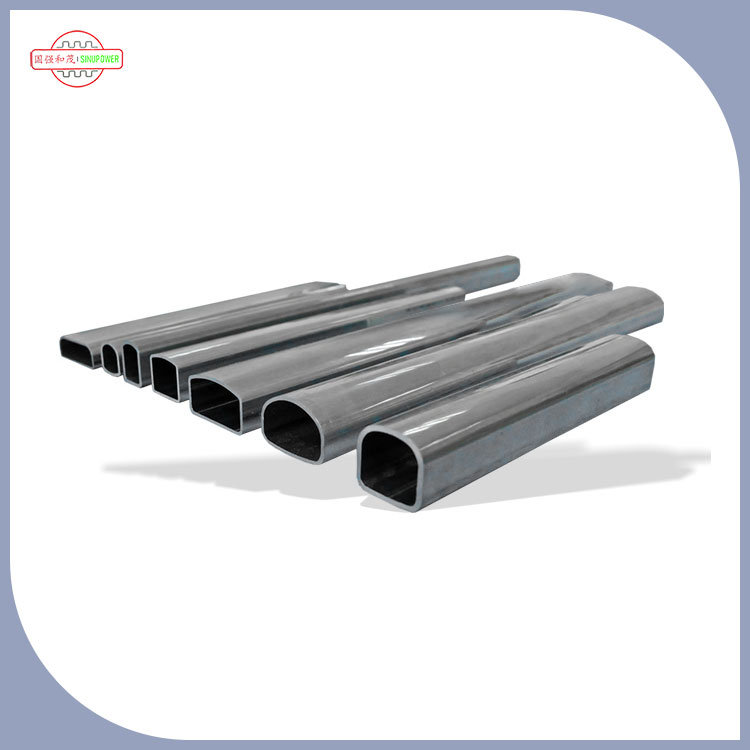

The Lightweight Aluminium Material D-Type Condenser Header Pipes is a flat surface on one side and a curved surface on the other side, paired with a lightweight aluminum alloy substrate (3003/4343 composite aluminum). It is a mainstream current collecting component for parallel flow condensers and new energy vehicle thermal management, divided into five dimensions: material lightweight advantages, D-type structure heat transfer and assembly advantages, mechanical strength and durability, fluid and process compatibility, and cost adaptability
The importance of Battery Thermal Management System (BTMS) in electric vehicles lies in its ability to maintain chemical stability, performance consistency, and operational safety under constantly changing thermal conditions. Efficient Heat Transfer Material Battery Cooling Channels play a key role in shaping how heat is collected, transported, and balanced within the system, directly influencing efficiency and reliability.
The behavior of Rectangular Tubes during cutting, drilling, and welding is governed by the interaction between geometry, material properties, and process energy. Each stage introduces distinct mechanical and thermal challenges that must be managed to maintain structural integrity and dimensional consistency.
The physics behind waist constriction in tube geometry shows that small structural variations can significantly influence flow behavior, heat transfer consistency, and system stability. By combining pressure cycling, boundary layer disruption, and controlled micro-mixing, Hourglass Tubes for Radiators provide a distinctive approach to thermal management challenges in compact systems.
