In the modern HVAC, refrigeration, and automotive industries, efficiency and reliability are more than just competitive advantages—they are essential requirements. One of the critical components that ensures these qualities is the Automatic Condenser Evaporator Header Pipe. This specialized component plays a decisive role in the uniform distribution of refrigerant, stable system operation, and extended equipment life. When designed with precision and manufactured to global standards, header pipes become a cornerstone of performance.
In this article, we will explore the technical parameters of Automatic Condenser Evaporator Header Pipes, their functional benefits, applications, and why companies worldwide trust professional suppliers such as Sinupower Heat Transfer Tubes Changshu Ltd. for high-performance solutions.

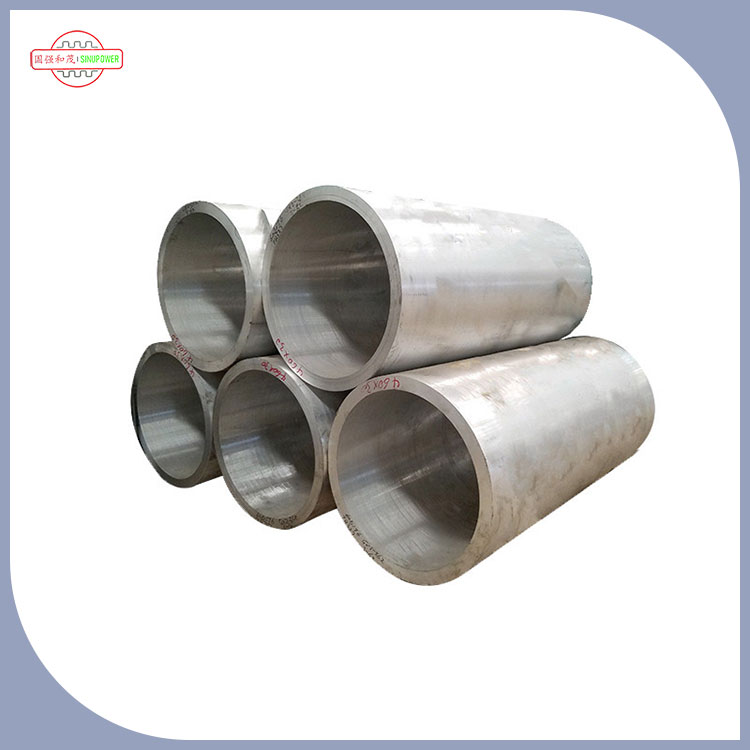

The Automatic Condenser Evaporator Header Pipe is a specialized tubular component used in heat exchanger systems, particularly in condensers and evaporators. Its primary role is to evenly distribute refrigerant or working fluid across multiple parallel tubes. By doing so, it prevents maldistribution, ensures stable thermal performance, and improves the energy efficiency of the overall system.
Unlike conventional header designs, automatic header pipes are optimized for:
Precision fluid distribution through carefully calculated orifice sizes.
Leak-proof performance due to advanced welding and forming techniques.
Durability under high pressure thanks to strict material selection and quality control.
Scalability for small, medium, and large-capacity heat exchangers.
Here are some of the primary advantages of using an Automatic Condenser Evaporator Header Pipe:
Uniform Refrigerant Flow – Prevents hotspots and ensures each tube receives equal refrigerant.
Improved Energy Efficiency – Optimized thermal exchange results in reduced power consumption.
Reduced System Stress – Balanced flow minimizes vibration, noise, and wear on system components.
Versatile Applications – Suitable for air conditioners, freezers, automotive A/C, and industrial refrigeration.
Enhanced Durability – Manufactured with corrosion-resistant copper or aluminum alloys, ensuring long service life.
Customizable Design – Available in multiple diameters, wall thicknesses, and configurations.
To meet international standards, header pipes are engineered with strict tolerances and material specifications. Below is a simplified table of common product parameters.
| Parameter | Specification Range |
|---|---|
| Material | Copper (C12200, C12000), Aluminum (3003, 6063) |
| Outer Diameter | 10 mm – 80 mm |
| Wall Thickness | 0.5 mm – 3.0 mm |
| Length | Customizable (up to 6 meters) |
| Surface Treatment | Bright annealed, degreased, corrosion-protected |
| Working Pressure | Up to 4.5 MPa |
| Connection Types | Extruded holes, brazed fittings, end caps |
These specifications are adjustable based on customer design, system requirements, and intended application. At Sinupower Heat Transfer Tubes Changshu Ltd., engineers work closely with clients to ensure exact compliance with project needs.
The Automatic Condenser Evaporator Header Pipe is widely used in the following fields:
Residential and Commercial Air Conditioning Systems – Split A/C units, VRF/VRV systems, rooftop HVAC equipment.
Refrigeration Systems – Supermarket freezers, cold storage facilities, food processing chillers.
Automotive Industry – Car and truck air conditioning, electric vehicle battery cooling systems.
Industrial Heat Exchangers – Oil coolers, process chillers, and large-scale industrial refrigeration.
By adapting the header pipe design to the operating environment, manufacturers can ensure consistent and reliable system efficiency across all these sectors.
Even the smallest imbalance in refrigerant distribution can lead to:
Uneven cooling or heating performance
Increased energy consumption
Compressor damage due to liquid slugging
Premature system failures
This is why choosing a high-quality Automatic Condenser Evaporator Header Pipe from a trusted manufacturer is vital. Poor-quality headers often suffer from weak welds, inconsistent hole drilling, and material corrosion, all of which can jeopardize the entire system.
Sinupower Heat Transfer Tubes Changshu Ltd. addresses these risks by implementing advanced CNC drilling, automatic welding, and rigorous quality testing on every unit shipped.
Since every project is unique, header pipes can be tailored to match specific system requirements. Below are some customization options available:
Material Choice – Copper for high conductivity and anti-corrosion; aluminum for lightweight cost-effective solutions.
Diameter & Length – Adjusted to fit system capacity.
Orifice Sizes – Precision drilled holes for specific refrigerant flow rates.
Surface Treatments – Options like passivation, anti-corrosion coatings, or bright annealing.
End Connections – Brazed caps, extruded holes, or welded fittings.
This flexibility makes it possible to achieve maximum efficiency in systems ranging from small domestic refrigerators to industrial-grade chillers.
Refrigerant Maldistribution – Uniform orifice design ensures equal flow.
High Pressure Stress – Optimized wall thickness withstands extreme operating pressures.
Corrosion Damage – Protective coatings and high-quality alloys extend service life.
System Noise & Vibration – Balanced fluid distribution reduces mechanical stress.
To maximize the lifespan and performance of your Automatic Condenser Evaporator Header Pipe:
Ensure clean and dry installation – Any debris or moisture can cause internal corrosion.
Use professional brazing techniques – Prevents leakage at connection points.
Conduct periodic inspections – Check for corrosion, blockages, or refrigerant leaks.
Follow manufacturer's torque specifications when connecting fittings.
Replace damaged headers promptly to avoid compressor failure.
Q1: What is the main function of an Automatic Condenser Evaporator Header Pipe?
A1: Its main function is to evenly distribute refrigerant into multiple parallel tubes in a condenser or evaporator, ensuring stable heat transfer and preventing maldistribution that could harm system efficiency.
Q2: What materials are commonly used for header pipes?
A2: Copper (C12200, C12000) and aluminum (3003, 6063) are the most common materials. Copper is preferred for high thermal conductivity and corrosion resistance, while aluminum is valued for lightweight applications.
Q3: How do I select the right header pipe for my system?
A3: Selection depends on operating pressure, refrigerant type, system capacity, and installation environment. Engineers usually provide guidance on dimensions, wall thickness, and orifice size to match system requirements.
Q4: Can Automatic Condenser Evaporator Header Pipes be customized?
A4: Yes. Customization includes diameter, wall thickness, orifice sizes, material, and end fittings. At Sinupower Heat Transfer Tubes Changshu Ltd., every project can be designed to meet specific application needs.
Over a decade of expertise in precision tube and header manufacturing.
Strict international quality certifications ensuring performance and reliability.
Cutting-edge equipment for CNC drilling, automatic welding, and advanced inspection.
Dedicated customer support from consultation to after-sales service.
Global reach with proven track records in Asia, Europe, and North America.
By partnering with Sinupower Heat Transfer Tubes Changshu Ltd., customers gain not only a product but also a reliable long-term solution for their heat exchange systems.
The Automatic Condenser Evaporator Header Pipe is a small yet indispensable part of modern HVAC and refrigeration systems. By guaranteeing uniform refrigerant distribution, reducing energy consumption, and preventing premature failures, it contributes significantly to operational efficiency and reliability.
When quality and precision matter most, choosing a trusted supplier is the best investment. With advanced manufacturing processes, customizable solutions, and a strong focus on client satisfaction, Sinupower Heat Transfer Tubes Changshu Ltd. stands out as a reliable partner in the global heat transfer industry.
For inquiries, technical consultations, or orders, please contact Sinupower Heat Transfer Tubes Changshu Ltd. directly to explore how Automatic Condenser Evaporator Header Pipes can optimize your system.
