Sinupower Heat Transfer Tubes Changshu Ltd. — a certified Manufacturer and Exporter of Maximum Thermal Dissipation D-Type Condenser Header Pipes — delivers precision-extruded aluminium manifolds engineered for refrigerant distribution and collection in D-type condenser systems. Our D-shaped profile is designed to support efficient heat exchange in commercial and industrial thermal management applications.
1. Core Function & Design Engineering

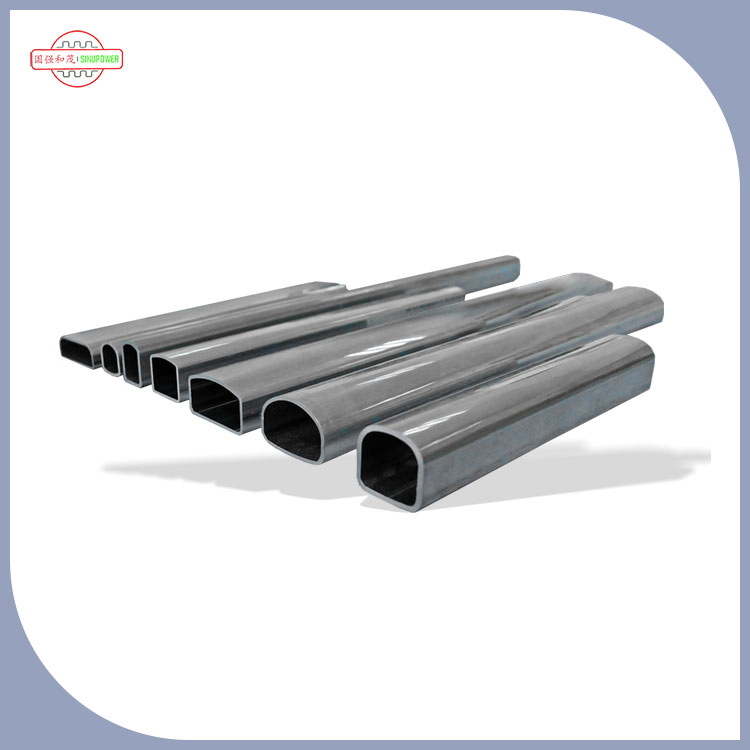

The Maximum Thermal Dissipation D-Type Condenser Header Pipes serve as the primary refrigerant distribution and collection manifold in D-type condenser systems. The D-shaped cross-section provides specific engineering benefits for condenser applications:
Refrigerant Distribution
-
Serves as inlet and outlet manifold for condenser tubes
-
D-shaped geometry designed for uniform refrigerant flow distribution
-
Supports multiple refrigerants: R-410A, R-32, CO₂ (R-744)
-
Compatible with various port configurations (round, oval, slotted)
Heat Exchange Support
-
Facilitates refrigerant phase change from vapor to liquid
-
Aluminium construction with 167 W/m·K thermal conductivity
-
Designed for integration with aluminium fin stocks
-
Supports system energy efficiency through optimized flow paths
2. Material Selection – Aluminium Alloy 6061-T6
Sinupower selects high-grade aluminium alloy 6061-T6 and 6063-T5 for the Maximum Thermal Dissipation D-Type Condenser Header Pipes based on verified material properties:
167 Thermal Conductivity (W/m·K) — verified material property
2.70 Density (g/cm³) — 40% lighter than copper (8.96 g/cm³)
520+ Salt Spray Resistance (hours, ASTM B117) — standard test method
Data Note: Thermal conductivity, density, and corrosion resistance figures are published material properties of 6061-T6 aluminium alloy. Actual component performance depends on system design, operating conditions, and integration with other components. Sinupower recommends customer-specific validation.
Weight Advantage
-
40% lighter than equivalent copper headers (2.70 vs 8.96 g/cm³)
-
Reduces structural load on condenser frames and supports
-
Lower freight costs for bulk international shipments
-
Easier handling during installation and maintenance
Corrosion Performance
-
Tested per ASTM B117 salt spray standard
-
Self-healing oxide layer under normal atmospheric conditions
-
Compatible with aluminium fin materials — no galvanic isolation required
-
RoHS and REACH compliant
3. Standard & Custom Specifications
Sinupower manufactures the Maximum Thermal Dissipation D-Type Condenser Header Pipes in the following standard and customizable configurations:
|
Parameter
|
Standard Range
|
Custom Option
|
|
Tube outer diameter (mm)
|
19.05 – 127.0
|
✓ Per drawing
|
|
Wall thickness (mm)
|
0.9 – 3.2
|
✓ Per drawing
|
|
Length (mm)
|
300 – 6,000
|
✓ Per drawing
|
|
D-flat width (mm)
|
12 – 85
|
✓ Per drawing
|
|
Alloy grade
|
6061-T6, 6063-T5
|
✓ 3003, 5052 available
|
|
Surface treatment
|
Mill finish, anodized (clear/gold), epoxy coating
|
✓ Per requirement
|
|
Port configuration
|
Round, oval, slotted
|
✓ Per customer drawing
|
|
Tolerance
|
±0.05 mm
|
✓ Tighter tolerances available
|
4. Quality Validation & Certifications
Production Control
-
In-line eddy current testing (ASTM E426)
-
100% dimensional CMM inspection on sample batches
-
Burst pressure test: 1.5× design pressure minimum
-
Full raw material traceability from melt to finish
-
SPC monitoring throughout production
Certifications
-
IATF16949 (Reg. 123456-789) — automotive quality standard
-
ISO9001:2015 (CN-45678-2020) — quality management
-
ISO14001:2015 — environmental management
-
ISO45001:2018 — occupational health & safety
-
Compliant: RoHS, REACH, AHRI 210/240
5. Primary Application Segments
The Maximum Thermal Dissipation D-Type Condenser Header Pipes are used in thermal management systems across multiple industries:
-
Commercial HVAC — Air-cooled condensers, chillers, rooftop units
-
Refrigeration — Cold storage, display cases, transport refrigeration
-
Heat Pumps — Air-to-water, air-to-air, and geothermal systems
-
Industrial Cooling — Power station dry cooling, process cooling
-
Automotive & EV — Battery cooling condensers, thermal management modules
6. How Does Sinupower Compare Against Alternative Suppliers?
Sinupower's Maximum Thermal Dissipation D-Type Condenser Header Pipes are manufactured to stringent quality standards. The following comparison highlights verifiable differences in capabilities and certifications:
|
Selection Criterion
|
Sinupower
|
Typical Supplier A
|
Typical Supplier B
|
|
IATF16949 certified
|
✔ Yes
|
No
|
✔ Yes
|
|
Dimensional tolerance capability
|
±0.05 mm
|
±0.15 mm (quoted)
|
±0.08 mm (quoted)
|
|
In-house tooling design
|
✔ 90+ equipment
|
Outsourced
|
Partial
|
|
Patent portfolio
|
33 active
|
2–5
|
8–12
|
|
Standard lead time
|
15–25 working days
|
25–35 working days
|
20–30 working days
|
|
Custom profile support
|
Full OEM/ODM
|
Limited
|
Full
|
|
Third-party test reports
|
Available upon request
|
Extra charge
|
Available
|
Note: Competitor information is based on publicly available industry data and customer feedback. Sinupower recommends direct validation of supplier capabilities.
7. Engineering Support & Customization
-
Design consultation: Our engineering team reviews customer drawings and provides feasibility analysis.
-
Prototype development: Sample headers produced in 10–15 working days with full dimensional report.
-
Mold design & fabrication: In-house tooling capability eliminates external dependency.
-
Post-sales support: Installation guidance, brazing parameter recommendations, and on-site support for large projects.
8. How to Specify the Right D-Type Header for Your System
-
Step 1 — Define system capacity: Determine your design cooling load (kW) to select appropriate header diameter.
-
Step 2 — Refrigerant type: R-410A, R-32, CO₂, or propane — each requires specific pressure rating.
-
Step 3 — Connection method: Brazed, mechanical (O-ring), or welded joints.
-
Step 4 — Environmental conditions: Coastal or industrial environments may require anodized or coated finishes.
-
Step 5 — Submit drawing or sample: Our engineering team responds within 24 hours with feasibility and quotation.
9. Sinupower — Your Long-Term Thermal Component Partner
Founded in 2018 by Mr. Gao Qiang (formerly with a Fortune 500 manufacturer), Sinupower has grown from a precision tube specialist to a full-service thermal component supplier. Our Maximum Thermal Dissipation D-Type Condenser Header Pipes are designed, tooled, and produced entirely in-house — giving us full control over quality, lead time, and cost.
-
33 patents — including 2 invention patents for D-profile extrusion and flow optimization.
-
90+ equipment units — welding lines, drawing machines, annealing furnaces, punch presses, and sawing stations.
-
Market presence: 87.8% East China, 8.4% South China, 3.8% North China — with active export preparation for global markets.
-
Permanent cooperation: Sanhua, Danfoss, Pankl — a testament to our quality consistency and supply reliability.
10. Frequently Asked Questions
Q1: What is the maximum operating pressure for these headers?
Our 6061-T6 headers are rated to 4.5 MPa (650 psi) at 65°C. CO₂ versions available with 7.0 MPa rating.
Q2: Can you match an existing competitor's header dimension?
Yes. We reverse-engineer from samples or drawings — typically within 5 working days for dimensional confirmation.
Q3: What is the standard MOQ?
1,000 pieces for standard sizes. Custom profiles: 500 pieces. Trial orders of 50–200 pieces accepted with prior discussion.
Q4: Do you provide burst test reports?
Yes. Each batch includes a burst test report to 1.5× design pressure, with certified equipment calibration.
Q5: What packaging do you use for sea freight?
PE-bagged, foam-separated layers, steel-reinforced wooden crates per ISPM-15. Container loading supervised with photo documentation.
Q6: Can Sinupower help with system redesign to use aluminium headers?
Yes. Our engineering team provides consultation on joining methods, thermal expansion, and system integration.
11. Order Fulfillment Process
-
Inquiry & drawing review — 24-hour initial response
-
Sample production & approval — 10–15 working days
-
Mass production with SPC monitoring — 15–25 working days
-
Final QC release — 100% dimension + burst test + visual inspection
-
Packing & dispatch — tracked shipment with full documentation
Request your technical datasheet and sample quote
Sinupower responds within 24 hours — including drawings, test reports, and pricing.
