Commercial HVAC System Condenser Header Pipes

Design and Function

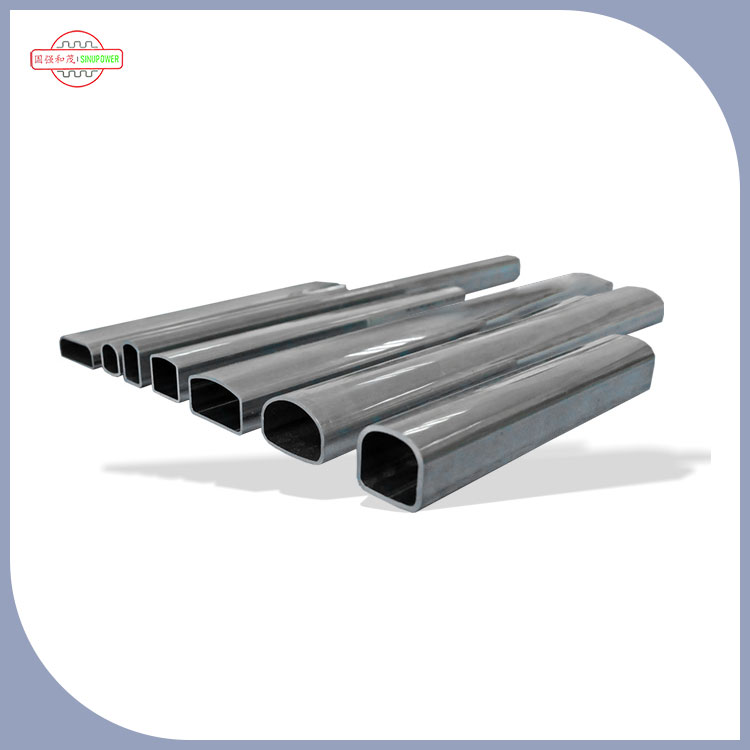

The Header Pipes is specifically designed to serve as the distribution and collection point for refrigerant in D-Type condensers. Its D-shaped configuration allows for efficient and uniform distribution of refrigerant across the condenser tubes.

As the refrigerant flows through the header pipe and into the condenser tubes, it releases heat to the surrounding air or water, causing it to condense and transform from vapor to liquid state. The efficiency of this heat transfer process directly impacts the overall performance and energy efficiency of the refrigeration or air conditioning system.

Material Advantages: Why Aluminum for Condenser Headers

The use of aluminium in the construction of the header pipe offers several advantages:

• Excellent Thermal Conductivity: Aluminum enables efficient heat transfer between the refrigerant and the surrounding cooling medium.
• Lightweight Construction: Aluminum is significantly lighter than steel, reducing overall condenser weight and lowering transportation and installation costs.
• Corrosion Resistance: Aluminum naturally forms a protective oxide layer that resists pitting from humidity, industrial pollutants, and refrigerant chemicals.
• Cost Efficiency: Aluminum offers a favorable cost-performance ratio compared to copper manifolds, with D-type extrusion technology enabling high-volume production with consistent dimensional accuracy.

Engineered for Commercial HVAC: Beyond Standard Refrigeration

Commercial HVAC systems operate under fundamentally different conditions than standard refrigeration or automotive applications. Sinupower's Commercial HVAC System Condenser Header Pipes are specifically engineered to address these unique demands:

• Continuous Duty Cycle: Commercial HVAC systems often run 24/7/365. Our headers are stress-relieved via atmosphere-controlled annealing to withstand thousands of thermal expansion/contraction cycles without developing stress cracks.
• Large-Scale Batch Consistency: Commercial projects typically require hundreds or thousands of identical headers. As an IATF 16949 certified facility, we maintain Cpk ≥ 1.67 on all critical dimensions, ensuring the 10,000th unit matches the 1st.
• Downtime Cost Mitigation: A single header failure in a commercial building can lead to tenant complaints, inventory loss, or facility shutdown. Our rigorous destructive testing protocols minimize field failure risks.
• Scalable Production: With 90 sets of equipment, we can scale production to meet the demands of large commercial projects without compromising quality or lead time.

Specifications

Applications Across HVAC, Refrigeration, and Automotive

D-Type Condenser systems are commonly used in various industries, including HVAC (Heating, Ventilation, and Air Conditioning), refrigeration, and heat pump systems. Sinupower's Commercial HVAC System Condenser Header Pipes ensures smooth and reliable operation in:

• Commercial HVAC Systems: Rooftop units, central chiller arrays, and VRF systems
• Refrigeration Equipment: Walk-in coolers, refrigerated display cases, and cold storage facilities
• Heat Pump Systems: Reversible heat pump condensers for year-round heating and cooling
• Automotive HVAC: Passenger vehicle and heavy-duty truck air conditioning systems

Why the D-Shaped Geometry Matters

Many factories choose Header Pipes based on their comprehensive advantages in heat transfer efficiency, cost control, and structural adaptability, which can accurately match the core requirements of industrial condensers:

• Superior Fin Contact: The D-shaped flat section enables surface-to-surface contact with condenser fins, maximizing heat transfer area.
• Optimized Fluid Distribution: The D-shaped configuration ensures efficient and uniform distribution of refrigerant across the condenser tubes.
• Enhanced Structural Rigidity: D-section flatness provides higher bending and torsional strength than circular pipes under the same wall thickness.

Engineering Validation and Quality Assurance

Sinupower validates every batch of Commercial HVAC System Condenser Header Pipes through rigorous quality protocols:

• IATF 16949 Certified Facility: Full automotive-grade quality management system
• ISO Certifications: ISO 9001:2015, ISO 14001:2015, ISO 45001:2018
• In-Line Dimensional Inspection: Ensures consistent wall thickness and outer dimension tolerances
• Destructive Testing: Burst pressure testing per industry standards to ensure tubes withstand continuous pressure waves and thermal cycling

Commercial HVAC Partnerships – Proven Track Record

Why Procurement Teams Choose Sinupower

Sinupower combines manufacturing scale with engineering expertise to deliver consistent quality:

• Production Scale: 90 sets of equipment and tooling, including welding production lines, sawing machines, punching presses, drawing benches, and annealing furnaces
• Founding Expertise: Co-founded by Mr. Gao Qiang, an industry leader with prior Fortune 500 experience, recognized as 2019 Changshu Science and Technology Entrepreneurship Benchmark Talent and 2020 Jiangsu Innovation Talent
• Intellectual Property: 2 invention patents, 15 design patents, and 16 utility model patents
• Proven Partnerships: Long-term supply agreements with Sanhua, Danfoss, and Pankl

Application Case Study: Commercial Office Tower HVAC Retrofit

Project: 45-story commercial office tower, Shanghai CBD

Challenge: Building management needed to replace aging condenser headers across 12 rooftop HVAC units serving 2 million sq ft of office space. Requirements included:

• Drop-in compatibility with existing chiller infrastructure
• 20+ year design life under continuous operation
• 8-week delivery timeline to minimize tenant disruption

Solution: Sinupower supplied 480 custom Commercial HVAC System Condenser Header Pipes with:

• Custom D-profile matching existing header dimensions
• 3003 alloy with enhanced corrosion resistance
• Expedited 4-week tooling + 3-week production
• 100% dimensional inspection with Cpk reports

Outcome:

• Headers delivered 1 week ahead of schedule
• Zero fitment issues during installation
• Building owner reported 8% improvement in system COP post-installation
• Secured supply agreement for 3 additional buildings in the portfolio

FAQ: D-Type Condenser Header Sourcing and Engineering

What is the typical lead time for custom Commercial HVAC System Condenser Header Pipes?

Standard custom tooling fabrication takes 4-6 weeks. Sample production begins 1-2 weeks after tooling approval.

What aluminum alloys are used for D-type condenser headers?

Core alloys include 3003, 3102, X362, 1100, 1197, and 1297. Cladding alloys include 4045, 4343, 4043, and 7072.

What is the difference between D-type and round header pipes?

D-type pipes offer superior fin contact area and more uniform refrigerant distribution compared to round pipes. The D-shaped flat section enables surface-to-surface contact with condenser fins, maximizing heat transfer efficiency.

What certifications does Sinupower hold?

Sinupower is certified under IATF 16949, ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.

How does Sinupower ensure batch-to-batch consistency for large commercial projects?

As an IATF 16949 certified facility, we maintain Cpk ≥ 1.67 on all critical dimensions. In-line laser measurement checks wall thickness and outer dimensions every 0.5 meters across the entire production run. All data is logged and traceable to individual batches, ensuring consistency across thousands of units.

What is the lead time for emergency replacement orders?

For emergency commercial HVAC replacements, we offer expedited tooling fabrication in 3 weeks (standard 4-6 weeks) and sample production in 1 week. Full production can begin immediately after sample approval. Please contact our commercial sales team for emergency service.

What is the expected service life of these headers in commercial HVAC applications?

Our Commercial HVAC System Condenser Header Pipes are designed for 20+ years of continuous service in commercial applications. We validate this through accelerated thermal cycling tests and corrosion resistance testing. Wall thickness is designed with a safety margin against pressure and thermal fatigue.
