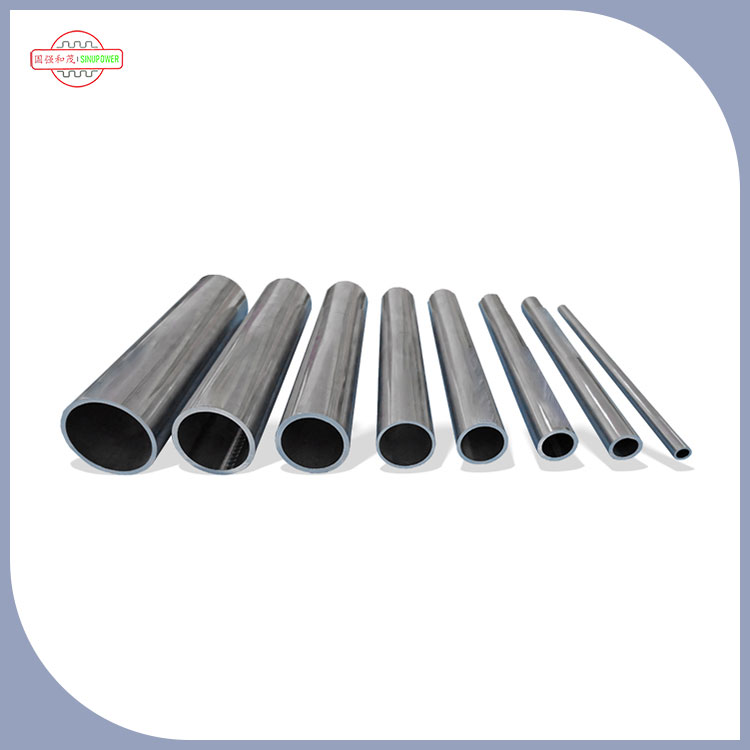

High Efficiency Liquid Coolant Flow Battery Tubes

Sinupower – a specialized Manufacturer of precision aluminum thermal components – produces High Efficiency Liquid Coolant Flow Battery Tubes that deliver uniform temperature distribution across every cell. For EV battery engineers, thermal management is the single largest factor determining pack performance. Our tubes are engineered with optimized internal flow channels that minimize pressure drop, maximize heat transfer, and ensure consistent cooling across the entire battery pack. When cells stay within their optimal temperature window, charging speeds increase, cycle life extends, and thermal runaway risk drops. Sinupower's battery cooling tubes help OEMs achieve these outcomes with reliable, production-ready components.

Cycle Life Extension – Every 1°C Cuts Degradation Rate

Lithium-ion battery degradation accelerates exponentially with temperature. Sinupower's High Efficiency Liquid Coolant Flow Battery Tubes maintain cell temperatures within the optimal 20–40°C window, directly extending battery service life.

Fast Charging – Heat Removal Enables Higher Current

Fast charging generates significant heat. Without adequate cooling, battery management systems must throttle charging current to protect cells – adding minutes to every charge session. Our tubes enable faster charging by removing heat as quickly as it is generated.

• Higher sustained C-rates: Effective cooling allows 2C–3C charging without exceeding temperature limits.
• Reduced charging time: 10–80% charge in under 30 minutes is achievable with properly designed liquid cooling.
• Consistent performance across seasons: Liquid cooling maintains performance in both hot and cold ambient conditions.

Tube Design – Internal Flow Channels That Maximize Heat Transfer

High Efficiency Liquid Coolant Flow Battery Tubes are distinguished by their internal channel geometry, which is optimized for battery cooling applications:

• Multi-port extrusion: Multiple internal channels increase the surface area in contact with coolant, extracting more heat per tube.
• Balanced flow distribution: Channel geometry ensures equal coolant flow across all parallel circuits, preventing hot spots.
• Smooth internal surfaces (Ra ≤0.8 μm): Low surface roughness minimizes pressure drop, reducing pump energy consumption by up to 15%.
• AA3003 and AA3102 alloys: 200–220 W/m·K thermal conductivity with excellent corrosion resistance in glycol-based coolants.
• Precision extrusion: ±0.05mm dimensional tolerances ensure consistent fitment in cooling plate assemblies.

Cooling Profile Comparison – Which Tube Design Fits Your Pack?

Manufacturing Process – Precision from Coil to Cooling Plate

Every batch of High Efficiency Liquid Coolant Flow Battery Tubes follows a controlled manufacturing sequence that ensures consistent quality:

Quality Standards – IATF 16949 and Battery-Grade Certification

Custom Design – Tubes Built for Your Battery Module

Sinupower designs and manufactures High Efficiency Liquid Coolant Flow Battery Tubes according to customer drawings. Customization options include:

• Tube profile: Flat, round, D-shaped, or custom cross-section.
• Internal channels: Multi-port geometry optimized for your coolant flow rate.
• Dimensions: Width, height, wall thickness, and length per your drawing.
• Surface treatment: Conversion coating, zinc-flake, or anodized finishes.
• End finishes: Square cut, chamfered, flared, or expanded ends.

Development Timeline

1. Spec submission: Customer provides drawings and performance targets.
2. Engineering review: Feasibility study and design optimization.
3. Tooling: Die development – 15–20 working days.
4. Prototype: Up to 100 pieces – die cost only.
5. Production: Full-scale with PPAP Level 3 available.

Frequently Asked Questions

Q: How much does cooling affect EV battery cycle life?

A: Operating cells at 40°C vs. 25°C can reduce cycle life by approximately 30–40%. Sinupower's cooling tubes help maintain cells within the optimal 20–40°C window, preserving usable capacity over thousands of cycles.

Q: What temperature difference (ΔT) can Sinupower tubes achieve across a battery pack?

A: Our tubes are designed to maintain temperature variation across the pack at ≤3°C, ensuring uniform aging and preventing capacity mismatch between cells.

Q: How do these tubes enable faster charging?

A: Effective heat extraction allows battery management systems to sustain higher charging currents without exceeding temperature limits – reducing 10–80% charge time to under 30 minutes in properly designed systems.

Q: What materials are used for battery cooling tubes?

A: Sinupower uses AA3003 and AA3102 aluminum alloys with 200–220 W/m·K thermal conductivity, chosen for their balance of thermal performance, formability, and corrosion resistance in glycol-based EV coolants.

Q: Can Sinupower produce cooling tubes for cylindrical cells?

A: Yes. We manufacture D-shaped tubes that provide optimal surface contact with cylindrical cells while maintaining efficient coolant flow.

Q: What testing do Sinupower tubes undergo for EV applications?

A: 100% dimensional inspection, leak testing (air-under-water or helium), tensile and burst testing per batch, and optional customer-specified validation testing under IATF 16949 quality management.

Contact Sinupower – Battery Cooling Solutions

Sinupower delivers High Efficiency Liquid Coolant Flow Battery Tubes that help EV OEMs and battery manufacturers achieve faster charging, extended cycle life, and safer battery packs. We invite battery pack manufacturers, EV OEMs, and energy storage integrators to contact us for samples, technical datasheets, or a collaborative design review.
