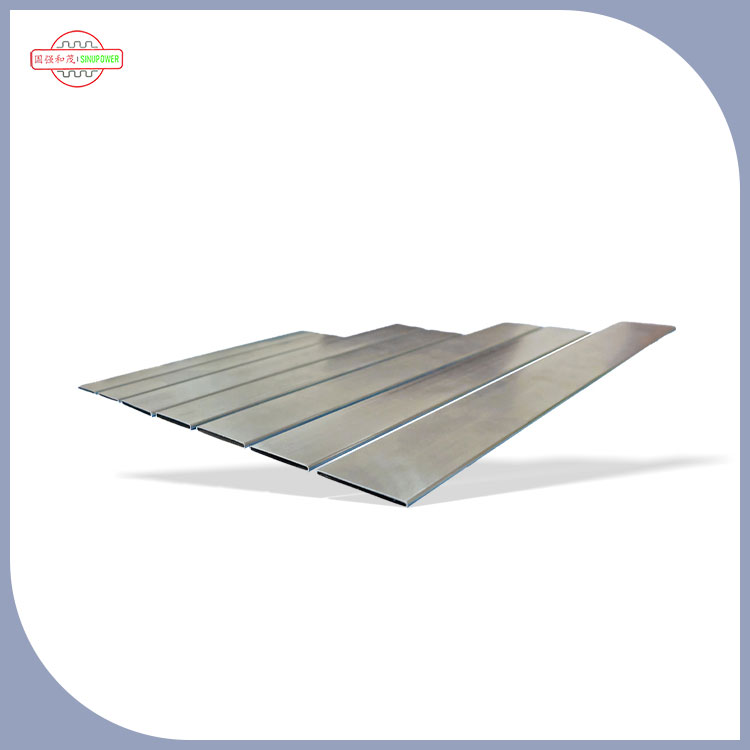

Precision Folded Radiator Core Component B Type Tubing

Sinupower is a professional Manufacturer of precision aluminum thermal components. Our Precision Folded Radiator Core Component B Type Tubing is a multi-port extruded aluminum tube designed specifically for folded radiator cores in automotive and industrial heat exchange systems. The distinctive "B" cross-section is not merely aesthetic – it is a functional geometry that increases the surface area available for heat transfer within a limited space, creates controlled turbulence in the coolant flow, and enables more compact radiator packaging. As a core component of the folded radiator assembly, these tubes are responsible for the primary heat exchange between the engine coolant and the surrounding air. Their design directly influences radiator efficiency, weight, and overall vehicle performance. Sinupower produces these B-tubes with precision extrusion and in-house process control, ensuring consistent geometry and reliable thermal performance across every production batch.

Core Component Role – Why B-Tubing Defines Radiator Performance

Precision Folded Radiator Core Component B Type Tubing serves as the primary heat exchange surface within the folded radiator core. The B-shaped profile delivers three critical functional advantages:

Folded Radiator Core Integration

• B-tubes are stacked in parallel between layers of folded fins, forming the complete radiator core.
• Coolant flows through the multi-port interior of each B-tube, while air passes across the exterior fin surfaces.
• The B-tube's extended surface area and turbulent flow patterns enable the core to achieve target cooling capacity with fewer tubes and less overall core volume.
• This integration approach reduces material consumption and radiator weight while maintaining or improving thermal performance.

Design Principles – The Science Behind the B-Shape

The B-shaped profile is the result of applied fluid dynamics and heat transfer engineering. Key design principles include:

Multi-Port Internal Geometry

• The B-tube is not a single hollow channel but features multiple internal ports divided by longitudinal webs.
• These ports increase the internal surface area in contact with the coolant, enhancing heat transfer from fluid to tube wall.
• Multi-port design also improves structural strength, allowing thinner walls and further weight reduction.

Controlled Turbulence Generation

• The B-profile's shape creates flow separation and reattachment points as coolant passes through the tube.
• This controlled turbulence disrupts the thermal boundary layer, which is the primary resistance to heat transfer in laminar flow.
• Enhanced mixing brings hotter coolant from the core flow into contact with the tube wall, improving overall heat transfer coefficient.

Optimized Surface Area-to-Volume Ratio

• The B-shape maximizes external surface area per unit of cross-sectional flow area.
• This means more tube surface is exposed to the air stream for a given coolant flow rate.
• The result is higher heat rejection capacity per tube, enabling smaller, lighter radiators.

B-Tubing vs. Traditional Round Tubing – Core Component Comparison

Precision Folded Radiator Core Component B Type Tubing differs fundamentally from traditional round tubing in several key aspects:

Equipment Capability

• Sinupower operates 90+ equipment and tooling types including welding production lines, sawing machines, punching presses, drawing machines, annealing furnaces, and cranes.
• This in-house equipment capability allows end-to-end process control from raw material to finished tube.
• All processes are performed under IATF 16949 quality management system oversight.

Applications – Where B-Tubing Delivers Core Value

Automotive Cooling Systems

• Engine cooling radiators – passenger vehicles, SUVs, light trucks
• Commercial vehicle radiators – buses, heavy trucks, off-highway equipment
• Charge air coolers – turbocharged and supercharged engines
• Oil coolers – transmission and engine oil cooling

HVAC and Stationary Systems

• Commercial air conditioning condensers
• Power station cooling systems
• Industrial heat exchangers
• Building HVAC air handling units

Electric Vehicle Thermal Management

• Battery cooling plates and heat exchangers
• Power electronics cooling systems
• Heat pump condensers and evaporators

Customization – Core Component Tailored To Your Radiator Design

Sinupower designs, manufactures, and processes Precision Folded Radiator Core Component B Type Tubing according to customer drawings or samples. Our lean control approach covers every stage:

• Profile dimensions: Tube width, height, and wall thickness tailored to your core design.
• Alloy selection: AA3003, AA3102, or custom alloys based on performance requirements.
• Multi-port configuration: Internal port count and geometry optimized for your coolant flow and pressure drop targets.
• Length: Cut to your specified assembly dimensions.
• Surface treatment: Conversion coating, zinc-flake, or anodized finishes for enhanced corrosion protection.
• End finishing: Deburred, chamfered, or expanded ends for header plate assembly.

Lean Control Across the Value Chain

• Raw material sourcing from ISO 14001-certified smelters with full traceability
• Process control from extrusion through final inspection
• Quality management across personnel, teams, processes, and support systems
• On-time delivery with full inspection documentation

Quality & Certifications – Verified Manufacturing Standards

Sinupower's manufacturing processes for Precision Folded Radiator Core Component B Type Tubing operate under the following certified systems:

Full certificate copies available upon request.

Partnerships & Supply Chain

Sinupower has established permanent and good cooperative relationships with recognized industry leaders:

• Sanhua – Global HVAC&R components manufacturer
• Danfoss – Cooling and heating solutions provider
• Pankl – High-performance drivetrain and thermal systems specialist

Packaging: Wooden crates with VCI anti-rust paper, plastic end caps, steel strapping. FOB Shanghai or Ningbo; EXW available.

Sustainability

• Energy: Regenerative burner technology reduces gas consumption by 18%.
• Recycling: 98% material utilization – all scrap returned to certified recyclers.
• Water: Closed-loop rinsing reduces water usage by 40%, zero heavy metal discharge.
• Compliance: RoHS and REACH compliant.
• Material efficiency: B-tube design uses less aluminum per unit of cooling capacity than traditional designs.

Frequently Asked Questions About B-Tubing

Q: What is the primary advantage of B-type tubing in folded radiator cores?

A: B-type tubing provides a larger surface area for heat transfer within the same core volume, induces turbulent coolant flow for better thermal exchange, and enables more compact radiator designs – all contributing to improved cooling performance and reduced weight.

Q: What alloys are used for B-tube production?

A: Sinupower uses AA3003 and AA3102 aluminum alloys, selected for their excellent thermal conductivity (200–220 W/m·K), formability, and corrosion resistance in automotive coolant environments.

Q: Can Sinupower produce custom B-tube profiles for specific radiator designs?

A: Yes. Sinupower can design and manufacture B-tube profiles according to customer drawings or samples. Our in-house tooling capability allows for custom die development in 15–20 working days.

Q: What certifications does Sinupower hold for B-tube manufacturing?

A: Sinupower is certified to IATF 16949:2016, ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.

Q: What is the typical lead time for B-tube orders?

A: Standard lead time is 20–25 working days for orders up to 50,000 pieces. Custom tooling adds 15–20 working days.

Q: How does the B-tube design improve heat transfer efficiency?

A: The B-shape increases surface area and creates controlled turbulence in the coolant flow, which disrupts the thermal boundary layer and improves convective heat transfer. This allows more heat to be rejected per tube with less core volume.

Q: What end finishes are available for B-tubes?

A: We offer square cut, deburred, chamfered, flared, and expanded ends to suit different header plate assembly methods.

Contact Sinupower – Your Partner In Core Component Solutions

Sinupower delivers Precision Folded Radiator Core Component B Type Tubing that enables radiator manufacturers to achieve superior thermal performance in compact, lightweight designs. We invite OEMs, tier-one suppliers, and radiator manufacturers to contact us for samples, technical datasheets, or a collaborative design review.
