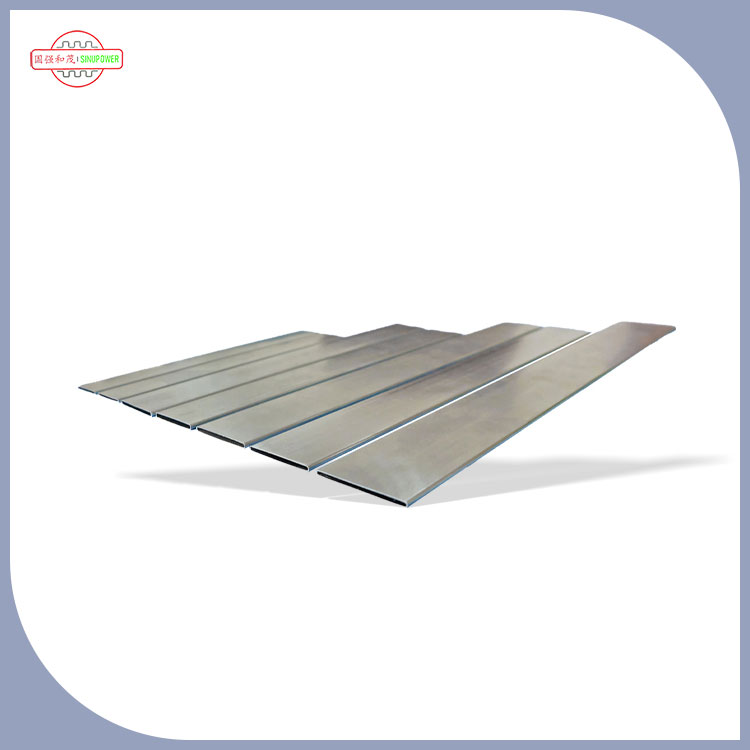

Lightweight Aluminum B Tubes For Reduced Vehicle Emissions

Sinupower is a professional Manufacturer of precision aluminum thermal components. Our Lightweight Aluminum B Tubes For Reduced Vehicle Emissions are multi-port extruded aluminum tubes featuring a distinctive "B" cross-section profile designed specifically for folded radiator cores. Unlike traditional round tubes, the B-shape creates a larger surface area-to-volume ratio, induces controlled turbulence in the coolant flow, and enables more compact radiator packaging. These design advantages translate directly into measurable vehicle benefits: reduced weight (lower fuel consumption and CO₂ emissions), improved cooling performance, and better space utilization in increasingly crowded engine compartments. As a dedicated aluminum B-tube radiator supplier, Sinupower serves global automotive manufacturers with lightweight thermal solutions.

Why B-Tubes Outperform Traditional Round Tubes

Sinupower's Lightweight Aluminum B Tubes For Reduced Vehicle Emissions are multi-port extruded aluminum tubes designed for high-efficiency folded radiator cores. As a leading lightweight radiator tube manufacturer, we deliver B-shaped tubes that outperform conventional round designs:

Enhanced Heat Transfer Surface Area

• The B-shaped profile provides a larger surface area within the same core volume compared to conventional round tubes.
• Increased surface area allows more heat to transfer from the engine coolant to the surrounding air per tube.
• Multi-port internal geometry creates additional internal surface area, further enhancing heat exchange.

Induced Coolant Turbulence

• The B-shape disturbs laminar flow, creating controlled turbulence that improves convective heat transfer.
• Turbulent flow reduces boundary layer thickness, allowing more efficient heat transfer from the coolant to the tube wall.
• Enhanced heat dissipation enables smaller, lighter radiators without sacrificing cooling capacity.

Space-Saving Design

• The compact B-profile allows more tubes to be packed into a given core area.
• Reduced radiator depth frees up space for other engine components or improved vehicle aerodynamics.
• Particularly valuable in modern vehicles with tight engine compartment constraints.

Weight Reduction Through Compact Core Design

• Smaller radiators require less material – directly reducing component weight.
• Lower weight translates to reduced fuel consumption and lower CO₂ emissions.
• Lighter vehicles also experience improved acceleration and handling.

Emissions Reduction – The Weight-To-Emission Connection

For automotive OEMs seeking automotive emissions reduction solutions, Sinupower's B-tubes offer a direct path to lower CO₂ output through weight reduction. The relationship between vehicle weight and emissions is well established: a 100 kg reduction in vehicle weight is widely cited in automotive engineering literature as reducing CO₂ emissions by approximately 8–10 g/km (source: International Council on Clean Transportation and SAE technical papers).

The table below illustrates how Lightweight Aluminum B Tubes For Reduced Vehicle Emissions contribute to vehicle weight reduction and, consequently, lower CO₂ output:

B-Tube vs. Traditional Round Tube – Performance Comparison

Manufacturing Excellence – How Sinupower Ensures Quality

Precision Extrusion Capability

• Multi-port B-profile extrusion requires precise die design and process control.
• Sinupower's 90+ equipment types include state-of-the-art extrusion and drawing lines.
• Real-time dimensional monitoring ensures consistent B-profile geometry across production runs.
• Alloy selection: AA3003 and AA3102 for optimal thermal conductivity and formability.

In-House Process Control

• Extrusion → sawing → punching → drawing → annealing – all processes performed in-house.
• Controlled atmosphere annealing ensures consistent grain structure and mechanical properties.
• In-line inspection systems catch dimensional deviations before they reach downstream processes.

100% Quality Verification

• Each tube inspected for critical dimensions: width, height, wall thickness.
• Leak testing per customer specification (air-under-water or helium mass spectrometry).
• Tensile and burst testing performed on each heat-treatment batch.

Certified Management Systems

• IATF 16949:2016 – Automotive quality management
• ISO 9001:2015 – Quality management
• ISO 14001:2015 – Environmental management
• ISO 45001:2018 – Occupational health and safety

Applications – Where B-Tubes Deliver Value

Automotive Engine Cooling

• Passenger vehicle radiators (sedans, SUVs, light trucks)
• Commercial vehicle cooling systems (buses, trucks)
• Heavy equipment (construction, agricultural machinery)

HVAC and Stationary Cooling

• Commercial air conditioning condensers
• Power station cooling systems
• Industrial heat exchangers

Electric Vehicle Thermal Management

• Battery cooling systems
• Power electronics cooling
• Heat pump condensers

Customization – Built To Your Specifications

Sinupower can design, manufacture, and process Lightweight Aluminum B Tubes For Reduced Vehicle Emissions according to customer drawings or samples. Our customization capabilities include:

• Profile dimensions: Tube width, height, and wall thickness tailored to your radiator core design.
• Alloy selection: AA3003, AA3102, or custom alloys based on performance requirements.
• Length: Cut to your specified assembly dimensions.
• Surface treatment: Conversion coating, zinc-flake, or anodized finishes.
• End finishes: Deburred, chamfered, or expanded ends for header attachment.

Lean Control Across the Value Chain

• Raw material sourcing from certified smelters
• Process control from extrusion through final inspection
• On-time delivery with full traceability
• Continuous improvement through internal and external quality audits

Partnerships That Validate Our Capability

Sinupower has established permanent and good cooperative relationships with recognized industry leaders:

• Sanhua – Global HVAC&R components manufacturer
• Danfoss – Cooling and heating solutions provider
• Pankl – High-performance drivetrain and thermal systems specialist

These partnerships require Sinupower to maintain consistently high quality standards, reliable delivery performance, and continuous improvement. Our current sales distribution reflects our strong domestic presence: Jiangsu, Zhejiang, Shanghai, and Anhui account for 87.76% of sales, with 8.44% in Southern China and 3.80% in Northern China. We are actively expanding into overseas markets.

Intellectual Property and Innovation

Since 2019, Sinupower has been awarded:

• 2 invention patents – covering tube profile designs and manufacturing processes
• 15 design patents – protecting B-tube and related product geometries
• 16 utility model patents – focused on practical manufacturing improvements

Our commitment to integrity, dedication, quality, and innovation drives our continued development of advanced thermal solutions. We maintain close ties with industry customers and continue to develop technology that positions Sinupower as a global enterprise in new energy precision pipes.

Quality Assurance – Our Commitment To Zero Defects

Raw Material Control

• Aluminum billets from ISO 14001-certified smelters
• Incoming inspection of chemical composition, grain size, and surface quality

In-Process Controls

• Extrusion: temperature, speed, and pressure monitored in real-time
• Drawing: multi-pass cold drawing for dimensional accuracy
• Annealing: controlled atmosphere with ±5°C uniformity

Final Inspection (100%)

• Dimensional: width, height, wall thickness measured at multiple points
• Leak test: air-under-water or helium mass spectrometry
• Surface: visual and magnified inspection for defects
• Mechanical: tensile, yield, and elongation per batch

Sustainability – Aligned With Global Emission Targets

Lightweight Aluminum B Tubes For Reduced Vehicle Emissions support global sustainability goals:

• Lightweighting: Reduces vehicle weight, directly lowering fuel consumption and CO₂ emissions.
• Material efficiency: B-tube design uses less aluminum per unit of cooling capacity.
• Recyclability: Aluminum is 100% recyclable with no loss of material properties.
• Energy efficiency: Sinupower's regenerative burner technology reduces gas consumption by 18%.
• Waste reduction: 98% material utilization with all scrap returned to certified recyclers.
• Compliance: RoHS and REACH compliant.

Frequently Asked Questions About B-Tubes

Q: What is the primary advantage of B-tubes over traditional round tubes?

A: B-tubes provide a larger surface area for heat transfer within the same space, induce turbulent coolant flow for better thermal exchange, and enable more compact, lighter radiator designs – all contributing to reduced vehicle weight and lower emissions.

Q: What alloys are used for B-tube production?

A: Sinupower uses AA3003 and AA3102 aluminum alloys, chosen for their excellent thermal conductivity, formability, and corrosion resistance in automotive coolant environments.

Q: Can you produce custom B-tube profiles?

A: Yes. Sinupower can design and manufacture B-tube profiles according to customer drawings or samples. Our in-house tooling capability allows for custom die development in 15–20 working days.

Q: What certifications does Sinupower hold?

A: Sinupower is certified to IATF 16949:2016, ISO 9001:2015, ISO 14001:2015, and ISO 45001:2018.

Q: What is the typical lead time for B-tube orders?

A: Standard lead time is 20–25 working days for orders up to 50,000 pieces. Custom tooling adds 15–20 working days.

Q: How does Sinupower ensure B-tube quality?

A: 100% dimensional inspection, leak testing, and mechanical testing per batch. All manufacturing processes are performed in-house under IATF 16949 quality management.

Q: How much weight can a B-tube radiator save compared to a traditional round-tube radiator?

A: Depending on the radiator size and design, a B-tube radiator can save approximately 1.0–3.5 kg compared to a traditional round-tube radiator of equivalent cooling capacity. This translates to approximately 0.8–3.0 g/km CO₂ reduction based on industry weight-to-emission relationships.

Contact Sinupower – Your Partner In Lightweight Thermal Solutions

Sinupower delivers Lightweight Aluminum B Tubes For Reduced Vehicle Emissions that help automotive manufacturers meet tightening emission regulations while maintaining superior cooling performance. We invite OEMs, tier-one suppliers, and thermal system engineers to contact us for samples, technical datasheets, or a collaborative design review.
