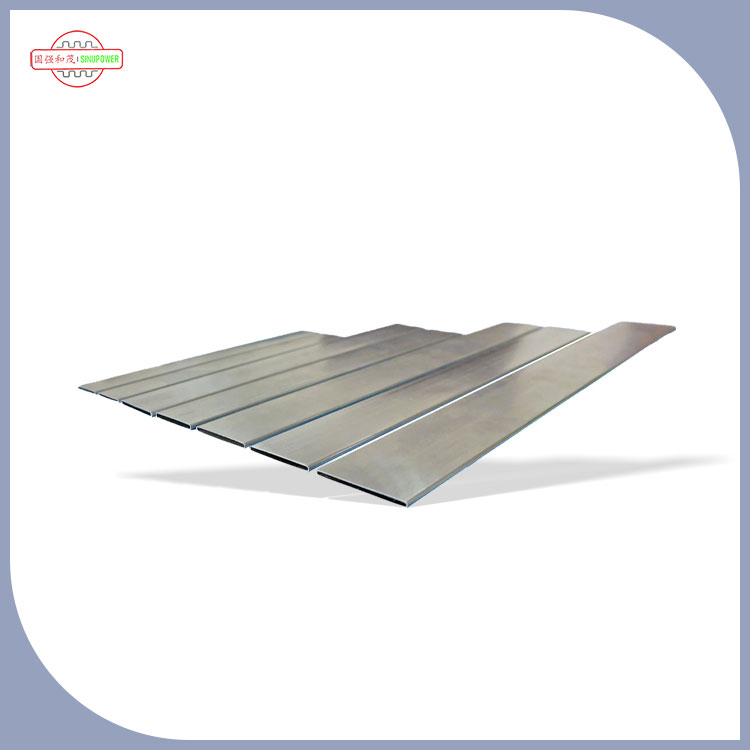

Sinupower is a specialized Manufacturer of high-durability aluminum thermal components for off-highway equipment. Our Construction Machinery Hydraulic Oil Cooling System Tubes are heavy-wall extruded aluminum conduits engineered specifically for hydraulic oil cooling circuits in construction and mining equipment. These tubes handle the unique demands of mobile hydraulics: high-pressure operation, extreme temperature swings, continuous vibration, and exposure to abrasive environments.
Hydraulic Oil Cooling Tube – Key Attributes
Sinupower's Construction Machinery Hydraulic Oil Cooling System Tubes are manufactured with the following core capabilities:
High-Pressure Design
Engineered for hydraulic systems in construction equipment. Wall thickness and alloy selected per application requirements.
Corrosion Resistant
Surface treatment options including conversion coating, zinc-flake, and epoxy for extended service life in harsh environments.
Thermal Stability
AA3003, AA6061, and AA6063 alloys with thermal conductivity 190–220 W/m·K. Suitable for continuous high-temperature oil cooling.
Vibration Resistant
Manufacturing processes designed to produce tubes that withstand the continuous vibration characteristic of off-highway equipment.
Technical Capabilities
The following table summarizes the standard and custom capabilities available for Sinupower's Construction Machinery Hydraulic Oil Cooling System Tubes:
|
Parameter
|
Sinupower Capability
|
|
Alloy Options
|
AA3003, AA6061, AA6063 (custom alloys on request)
|
|
Cross-Section Shapes
|
Round, D-shaped, oval, rectangular, custom profiles
|
|
Length Range
|
200 mm to 6000 mm (±1.0 mm)
|
|
End Finishes
|
Square cut, deburred, chamfered, flared, or punched
|
|
Surface Coating Options
|
Chemical conversion coating, zinc-flake, epoxy, anodized
|
|
Custom Die Lead Time
|
15–20 working days
|
|
Standard Lead Time
|
20–25 working days (≤10,000 pcs)
|
|
Quality Certifications
|
IATF 16949:2016 · ISO 9001:2015 · ISO 14001:2015 · ISO 45001:2018
|
Common Hydraulic Cooling Challenges – Sinupower Solutions
Field Challenges
Oil degradation from sustained high temperatures
Seal and hose failure from heat exposure
Tube corrosion from moisture and contaminants
Pressure fatigue from continuous operation
Frequent cooling system maintenance
Sinupower Solutions
High-performance aluminum alloys with optimized thermal conductivity
Surface coatings for corrosion protection
IATF 16949 process controls for consistent quality
Custom wall thickness and profiles per application
100% leak-tested and dimensionally inspected tubes
Application Focus – Equipment Types
Primary Equipment
-
Excavators – swing and implement circuits
-
Wheel Loaders – transmission and steering cooling
-
Bulldozers – final drive and torque converter
-
Motor Graders – implement hydraulic systems
-
Rough Terrain Cranes – hoist and swing circuits
-
Articulated Dump Trucks – retarder and brake cooling
Integration Points
-
Oil-to-air coolers behind or alongside engine radiators
-
Standalone hydraulic oil coolers
-
Charge-air cooler integrated designs
-
Return-line and suction-line cooling configurations
Hydraulic Tubes vs. Standard Radiator Tubes – Design Approach
|
Design Factor
|
Sinupower Hydraulic Tube
|
Standard Radiator Tube
|
|
Primary Application
|
Hydraulic oil cooling – construction equipment
|
Engine coolant / HVAC / stationary cooling
|
|
Wall Thickness
|
Customized per pressure requirements (0.80–3.00 mm range available)
|
Standard per application (0.30–1.50 mm range)
|
|
End Finishes
|
Flared, beaded, grooved, threaded, or square cut
|
Square cut, deburred, chamfered
|
|
Surface Coating
|
Zinc-flake, epoxy, anodized, conversion coating
|
Standard conversion coating
|
|
Alloy Range
|
AA3003, AA6061, AA6063
|
AA3003, AA3102, AA6063
|
|
Quality Standard
|
IATF 16949:2016
|
IATF 16949:2016 / ISO 9001:2015
|
Quality & Certifications
System Certifications
-
IATF 16949:2016 – Automotive quality (hydraulic-grade applicable)
-
ISO 9001:2015 – Quality management
-
ISO 14001:2015 – Environmental management
-
ISO 45001:2018 – Occupational health and safety
Intellectual Property
-
2 invention patents (since 2019)
-
15 design patents
-
16 utility model patents
Partnerships & Supply Chain
Key industry partners:
-
Sanhua – Hydraulic oil cooler module supplier to construction OEMs
-
Danfoss – Hydraulic systems and cooling solutions
-
Pankl – Drivetrain and hydraulic components
5,000+
Annual tons capacity
20-25
Working days lead time
90+
Equipment & tooling types
87.76%
East China sales concentration
Packaging: Heavy-duty wooden crates with VCI anti-rust paper, plastic end caps, and steel strapping. FOB Shanghai or Ningbo; EXW terms available.
Customization Capabilities
Sinupower offers complete design-to-delivery service for custom Construction Machinery Hydraulic Oil Cooling System Tubes. We adapt to your machine specifications:
-
Pressure rating: We adjust wall thickness and alloy to match your system's operating pressure requirements.
-
Flow rate: Internal diameter optimized for your pump displacement.
-
Space constraints: Custom cross-sections – oval, D-shaped, rectangular, or asymmetric.
-
Mounting: Straight lengths or pre-bent tubes (bending service available).
-
End connections: Flared, beaded, grooved, threaded, or square cut ends.
-
Surface protection: Zinc-flake, epoxy, anodized, or conversion coating.
Custom Development Process
-
Design input: You provide hydraulic circuit parameters and space envelope.
-
Engineering review: Our team evaluates cross-section, tolerance, and material requirements.
-
Die manufacturing: CNC-EDM production – 15–20 working days.
-
Prototype run: Up to 50 pieces for validation – die cost only.
-
Production: Full manufacturing with PPAP Level 3 available.
-
Delivery: Shipment with inspection reports and material certificates.
Quality Assurance – Manufacturing Process
Every batch of Construction Machinery Hydraulic Oil Cooling System Tubes follows our rigorous quality control framework:
Raw Material Control
-
Billets from ISO 14001-certified smelters with material test reports.
-
Incoming inspection: chemical composition and grain size verification.
In-Process Controls
-
Extrusion: Real-time monitoring of temperature, speed, and pressure.
-
Drawing: Multi-pass cold drawing with intermediate annealing.
-
Annealing: Controlled atmosphere with ±5°C uniformity.
-
Cutting: EDM cutting for burr-free, square ends.
100% Final Inspection
-
Dimensional: OD, ID, wall thickness measured at multiple points.
-
Leak test: Air-under-water or helium mass spectrometry per customer requirement.
-
Surface: Visual and microscopic inspection for defects.
-
Mechanical: Tensile, yield, and elongation per heat-treatment batch.
Sustainability
-
Energy: Regenerative burner technology reduces gas consumption by 18%.
-
Recycling: 98% material utilization – all scrap returned to certified recyclers.
-
Water: Closed-loop rinsing reduces water usage by 40%, zero heavy metal discharge.
-
Compliance: RoHS and REACH compliant.
Frequently Asked Questions
Q: What wall thickness do you recommend for hydraulic systems?
A: We recommend wall thickness based on your system's maximum operating pressure, tube diameter, and safety margin. Our engineering team calculates the optimal thickness per your specifications.
Q: Are these tubes compatible with different hydraulic fluid types?
A: Yes. Our tubes are compatible with mineral-based and biodegradable hydraulic fluids. Material selection can be tailored to your specific fluid type.
Q: Can you produce non-circular profiles?
A: Yes. We manufacture D-shaped, oval, rectangular, and custom asymmetric profiles. Prototype dies are available in 15–20 working days.
Q: What is the standard lead time?
A: Standard lead time is 20–25 working days for orders up to 10,000 pieces. Expedited production is available for urgent projects.
Q: Do you provide material certificates with shipments?
A: Yes. Every shipment includes mill test certificates (MTC) per EN 10204 3.1, plus dimensional and leakage inspection reports.
Q: What coating options are available for corrosion protection?
A: We offer chemical conversion coating, zinc-flake, epoxy, and anodized finishes. Selection depends on your operating environment and corrosion resistance requirements.
Q: Can you supply tubes longer than 6000 mm?
A: Standard maximum length is 6000 mm. For longer requirements, please consult our engineering team – feasibility depends on cross-section and alloy.
Sinupower delivers Construction Machinery Hydraulic Oil Cooling System Tubes that help fleet operators and OEMs maintain hydraulic system reliability. We invite construction equipment manufacturers, hydraulic system integrators, and aftermarket suppliers to contact us for samples, technical datasheets, or a collaborative design review.
Partner with Sinupower – reliability for the toughest jobsites.
